Enable Mobile Spectrum Analysis Applications

The ThinkRF P120 Vehicular Power Conditioner allows users to power in-vehicle equipment through a standard vehicle power supply while protecting equipment from vehicular power transients. When combined with the ThinkRF series of Real-Time Spectrum Analyzers, the P120 power conditioner enables mobile spectrum analysis applications such as drive testing, coverage mapping, interference hunting, and regulatory monitoring.

P120 Blog Diagram - Industry Standard Connections

Industry standard connection points and enclosure

The P120 is designed to give a single regulated output of +12VDC under different input voltages ranging from +8V to +32V. The inputs and outputs are provided via strain-reliefed 16 AWG cables with 2-pin square ML-XT style Molex connectors. There is a choice of input using standard vehicle cigarette lighter style connector or loose lead stranded soldered cables. The output cable is terminated with a LEMO series connector.

ThinkRF P120 Vehicular Power Conditioner for mobile situational awareness and spectrum analysis applications

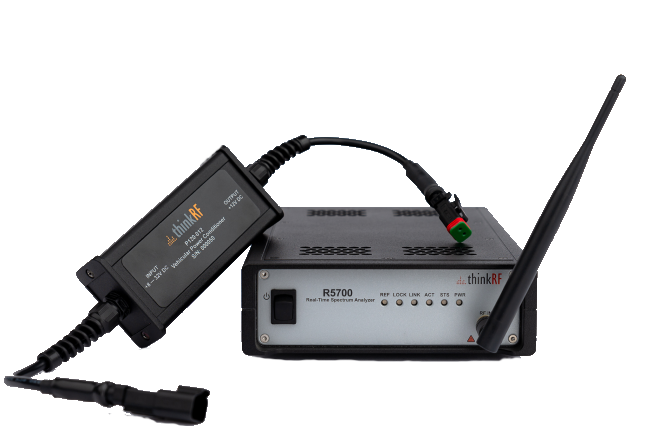

ThinkRF R5700 with P120 Vehicular Power Conditioner

Compact and portable form factor

The P120 power conditioner is compact, lightweight, and portable for easy use in any deployment scenario or vehicle, including military vehicles, vans, boats, or UAVs. Measuring 131 mm x 62 mm x 34 mm, the P120 powers in vehicle equipment without adding significant size or weight to the solution.

Benefits of the P120 Vehicular Power Conditioner

  • Enable mobile spectrum analysis applications such as drive testing, coverage mapping, interference hunting, and regulatory monitoring
  • Lightweight and portable to be easily used in confined spaces such as a vehicle
  • Easily connects to any ThinkRF Real-Time Spectrum Analyzer for complete mobile situational awareness solutions

Contact Sales to learn more about how the ThinkRF P120 Vehicular Power Conditioner can help you.
